Equipment Catalog

Zhuomao industrial equipment, by category.

Flagship models across four lines · BGA rework & reballing, X-ray inspection (including 3D/CT), X-ray component counting, and AOI/SPI. Additional SKUs and configurations are available; all pricing is provided on request for North American delivery.

About the Zhuomao line →

BGA Rework X-Ray Inspection X-Ray Counting AOI / SPI
BGA Rework & Reballing多功能 / 光学对位 / 视觉对位 / 在线除锡植球返修设备

Optical- and visual-alignment automatic rework stations for precision reballing and reworking of BGA/CSP/QFN packages · camera-guided placement, closed-loop hot-air/IR reflow, plus inline desolder-clean-reball systems and automated reballing lines.

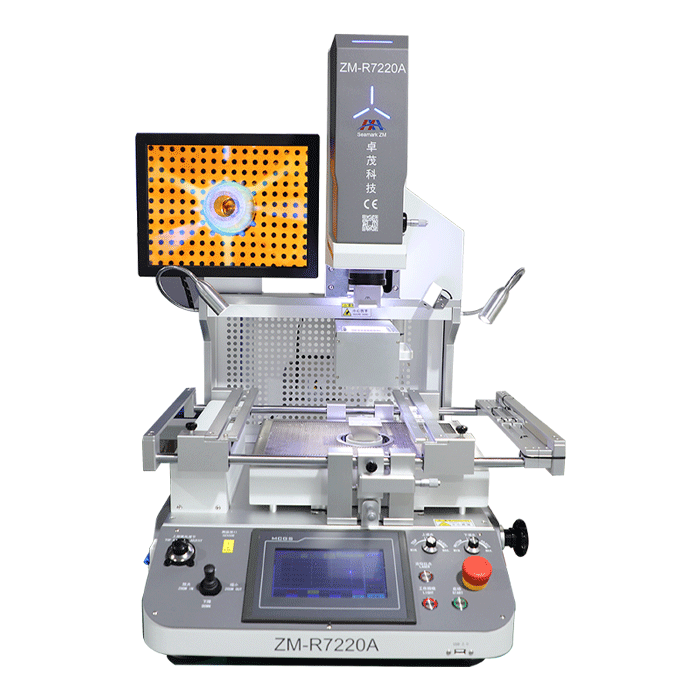

ZM-R7220A Zhuomao ZM-R7220A optical-alignment BGA rework station
Optical-Alignment

ZM-R7220A

Optical-alignment BGA rework station with camera-guided vision placement for precise BGA/chip rework.

Request a QuoteEnquire →
ZM-R7830A Zhuomao ZM-R7830A fully automatic optical-alignment BGA rework system
Optical-Alignment

ZM-R7830A

Fully automatic optical-alignment BGA rework system with high-accuracy vision alignment and multi-zone thermal profiling.

Request a QuoteEnquire →

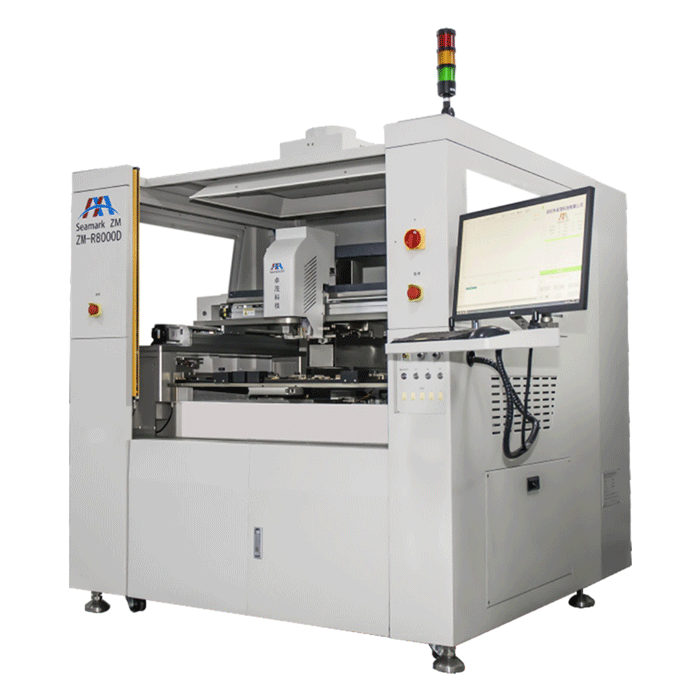

ZM-R8000D Zhuomao ZM-R8000D large-format visual-alignment rework workstation
Large-Format Visual

ZM-R8000D

Ultra-large-format precision rework workstation for big boards and modules requiring wide-area, uniform heating.

Request a QuoteEnquire →

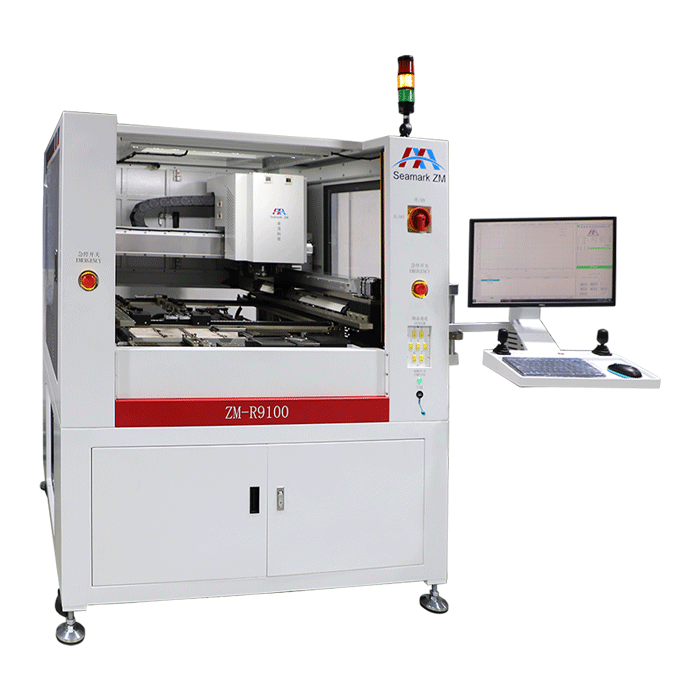

ZM-R9100 Zhuomao ZM-R9100 fully-automatic visual-alignment rework station
Fully-Automatic Visual

ZM-R9100

Large multifunctional fully-automatic intelligent rework station for demanding, high-mix BGA rework.

Request a QuoteEnquire →

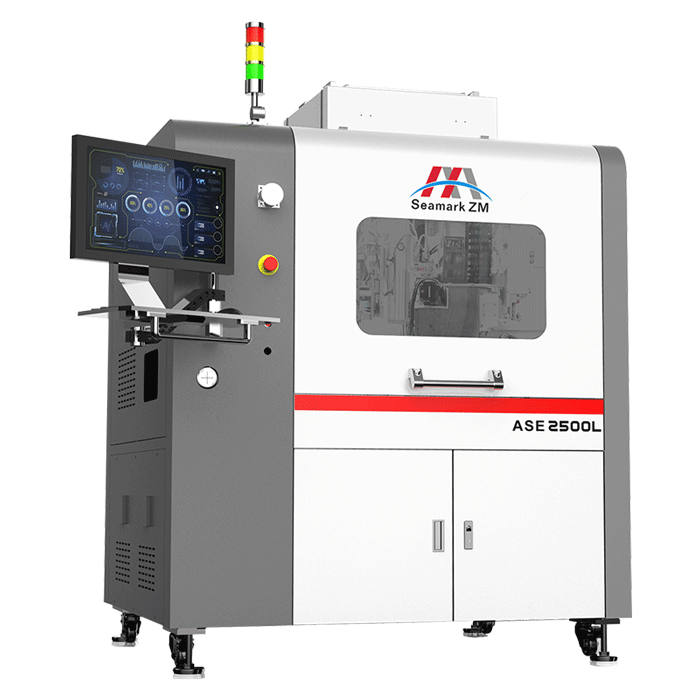

ASE2500L Zhuomao ASE2500L inline desolder-clean-reball-solder machine
Inline Desolder / Reball

ASE2500L

Fully automatic inline desolder-clean-reball-solder machine for high-volume BGA reballing on a production line.

Request a QuoteEnquire →

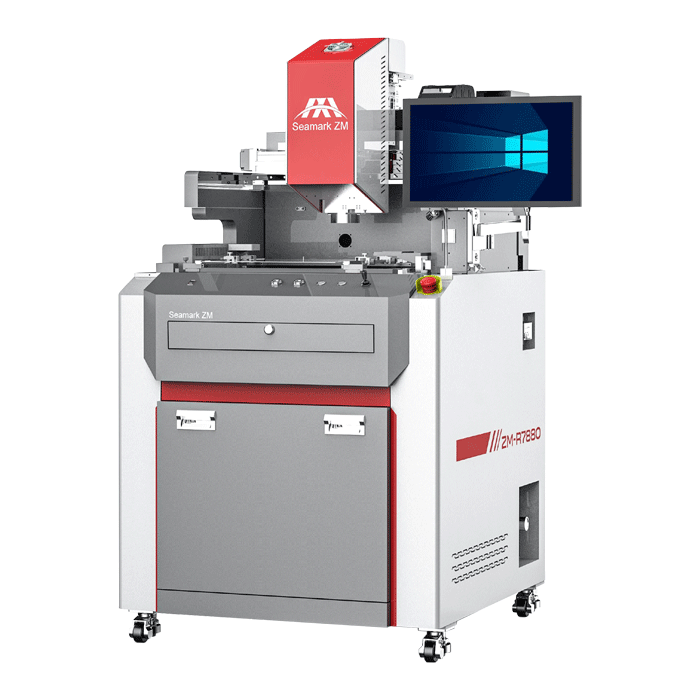

ZM-R7880 Zhuomao ZM-R7880 integrated desolder & tin-removal rework machine
Desolder + Tin Removal

ZM-R7880

Integrated desoldering and tin-removal rework machine that unifies chip removal and residual-solder cleaning.

Request a QuoteEnquire →

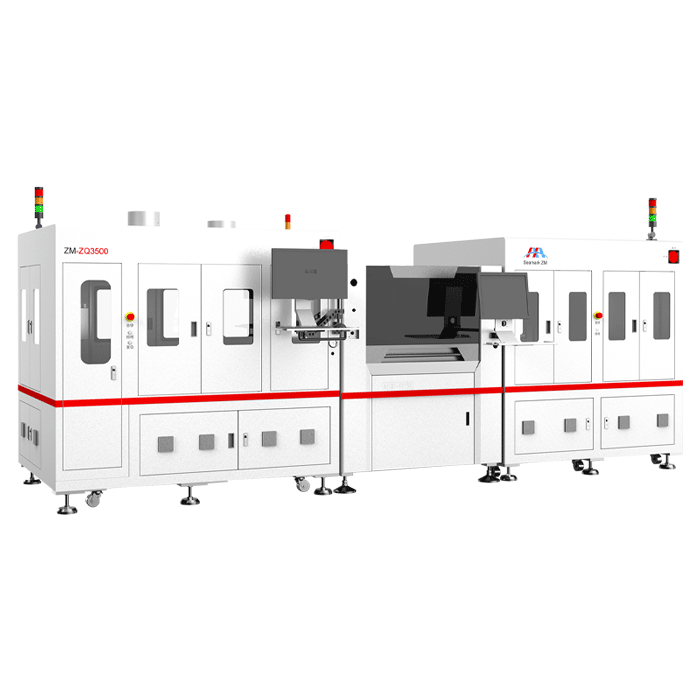

ZQ3500 Zhuomao ZQ3500 automated BGA desolder-and-reball rework line
Automated Reballing Line

ZQ3500

BGA desolder-and-reball automated rework line for high-volume, continuous reballing operations.

Request a QuoteEnquire →
X-Ray Inspection工业3D/CT · 集成电路 · 锂电池 · 铸件焊件 X-Ray检测设备

Industrial X-ray and CT systems for high-resolution inspection · volumetric 3D/CT, IC/PCBA and semiconductor packages, wound and cylindrical lithium-battery cells, and NDT of castings and weldments.

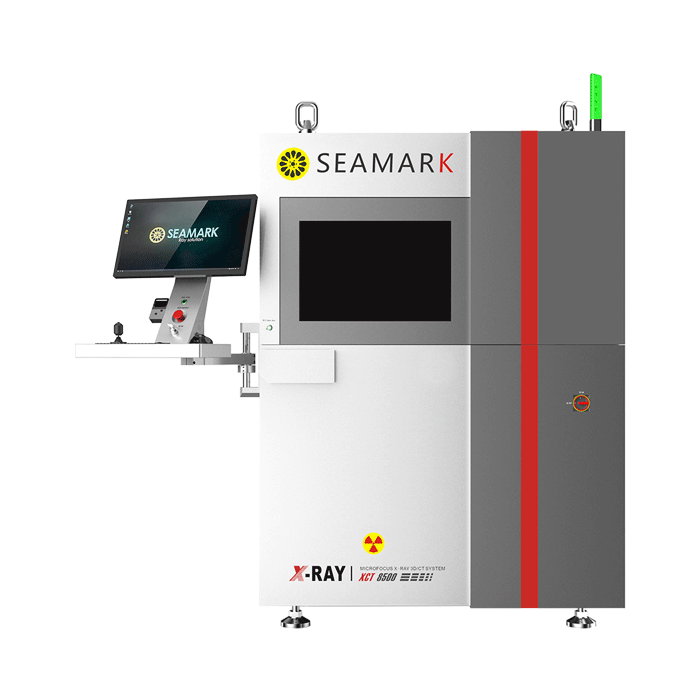

XCT8500 Zhuomao XCT8500 industrial CT / 3D X-ray inspection system
3D / CT

XCT8500

Industrial CT/3D X-ray inspection system delivering high-resolution volumetric imaging for internal defect analysis.

Request a QuoteEnquire →

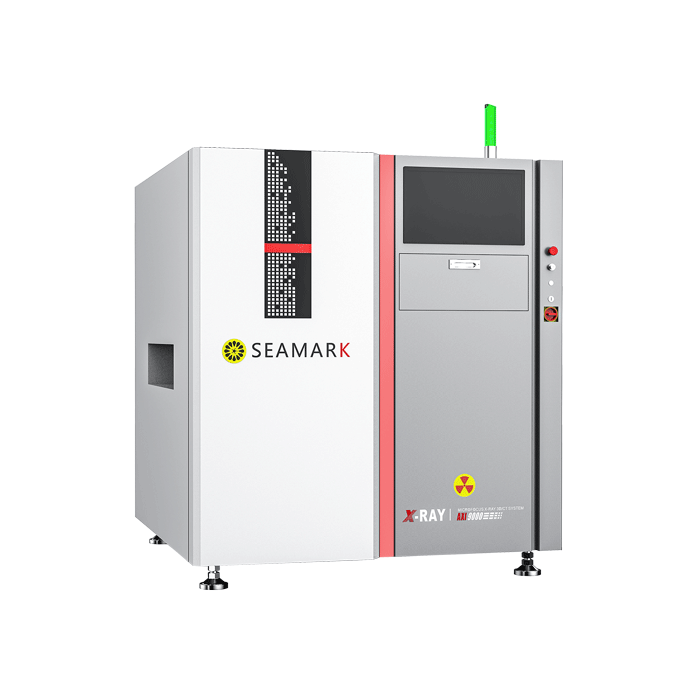

AXI9000 Zhuomao AXI9000 high-speed CT-type automatic X-ray inspection system
3D / CT · Inline

AXI9000

High-speed CT-type fully-automatic X-ray inspection system for inline volumetric quality control.

Request a QuoteEnquire →

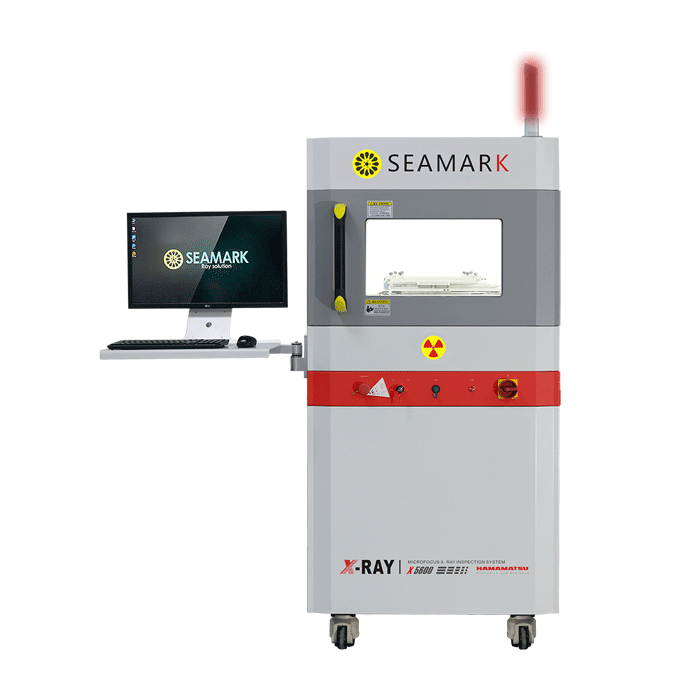

X5600 Zhuomao X5600 offline X-ray inspection system for IC and PCBA
IC / Semiconductor

X5600

Offline X-ray inspection system for ICs and PCBA, revealing solder voids, bridging and hidden joint defects.

Request a QuoteEnquire →

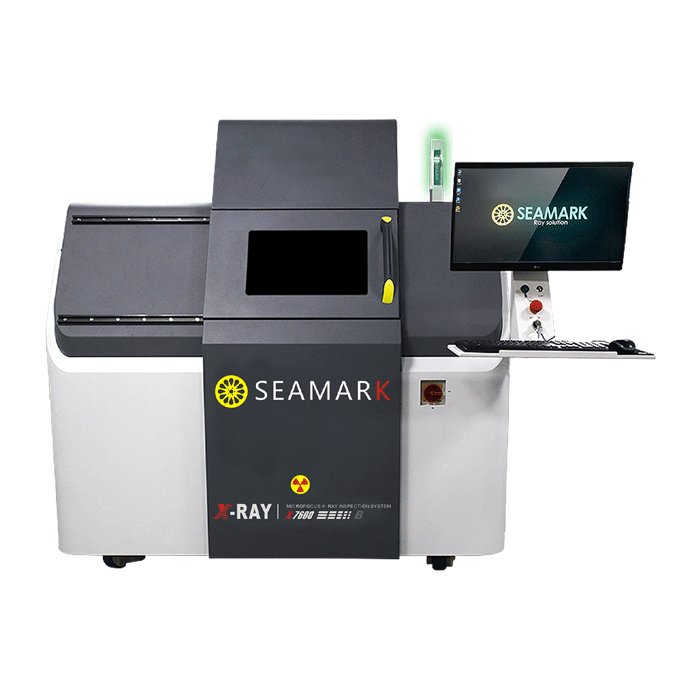

X7600B Zhuomao X7600B high-end offline X-ray inspection system
IC / Semiconductor

X7600B

High-end offline X-ray inspection system for fine-pitch IC and semiconductor package analysis.

Request a QuoteEnquire →

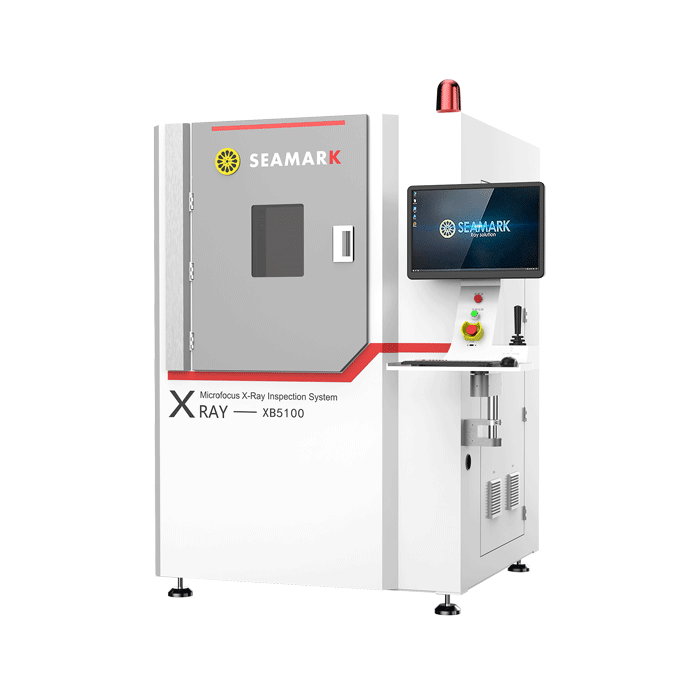

XB5100 Zhuomao XB5100 X-ray inspection for wound battery cells
Lithium Battery

XB5100

X-ray inspection system for wound (jelly-roll) battery cells, checking anode/cathode overhang and alignment.

Request a QuoteEnquire →

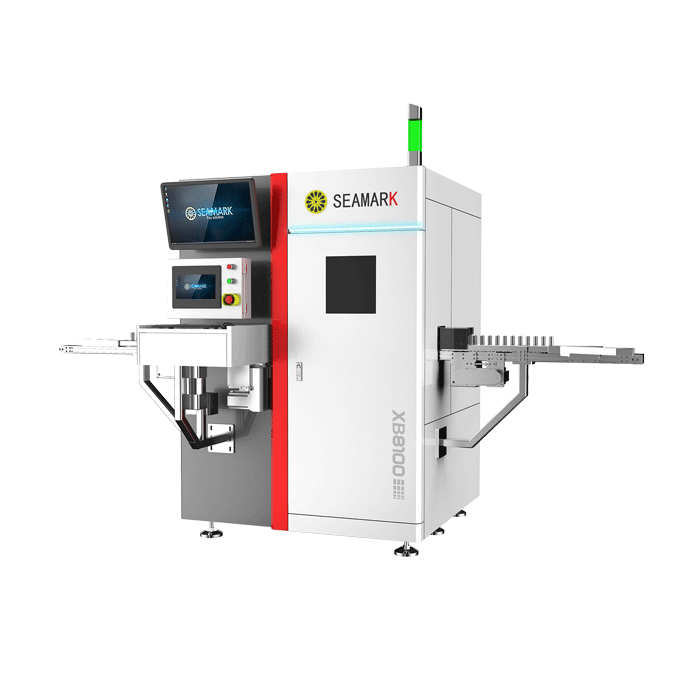

XB8100 Zhuomao XB8100 X-ray inspection for cylindrical battery cells
Lithium Battery

XB8100

X-ray inspection system for cylindrical battery cells with automated internal-structure defect detection.

Request a QuoteEnquire →

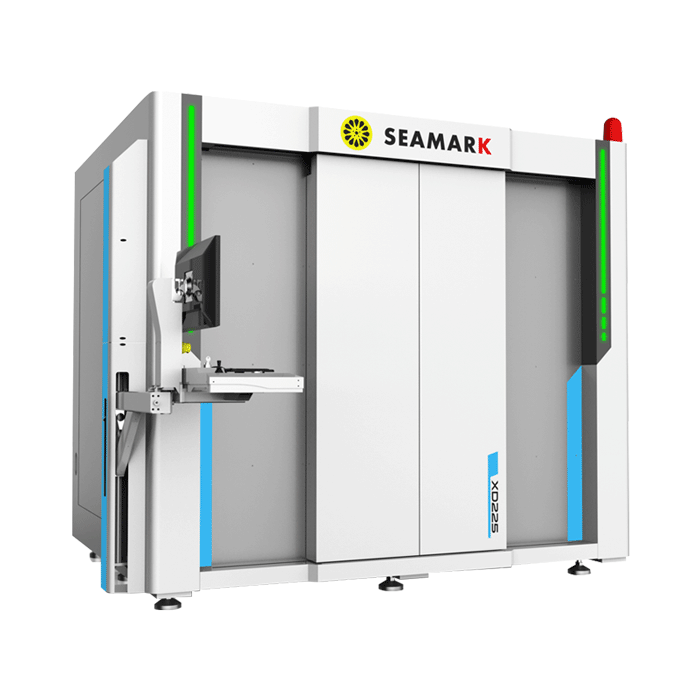

XD225 Zhuomao XD225 DR X-ray NDT system for castings and weldments
Casting / Weldment NDT

XD225

Intelligent DR X-ray inspection system for NDT of castings and weldments, detecting porosity and cracks.

Request a QuoteEnquire →
X-Ray Component CountingX-Ray点料机 (离线 / 在线 / 高速)

X-ray SMD component counters · offline, inline and high-speed · that automatically count reels, trays and cut-tape without unpacking, for fast and accurate SMD material inventory.

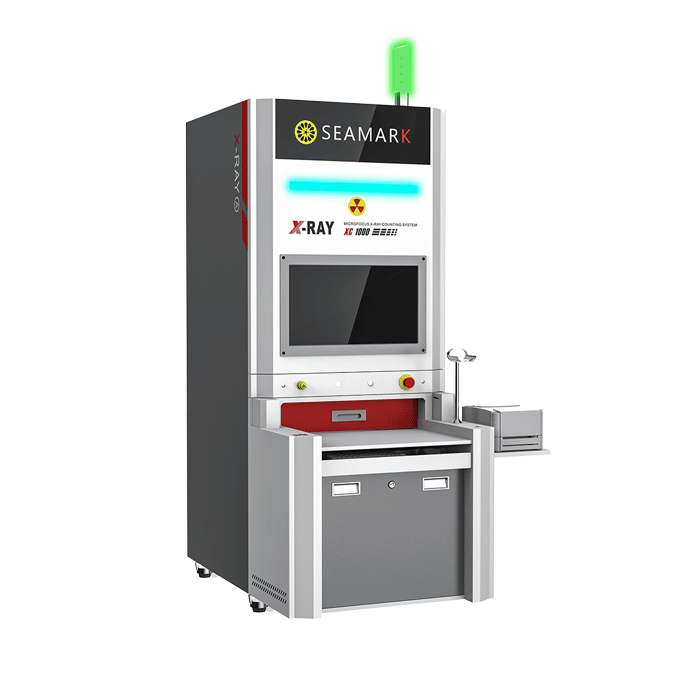

XC1000 Zhuomao XC1000 offline X-ray SMD component counter
Offline Counter

XC1000

Offline automatic X-ray SMD component counter for fast, non-destructive reel and tray inventory counting.

Request a QuoteEnquire →

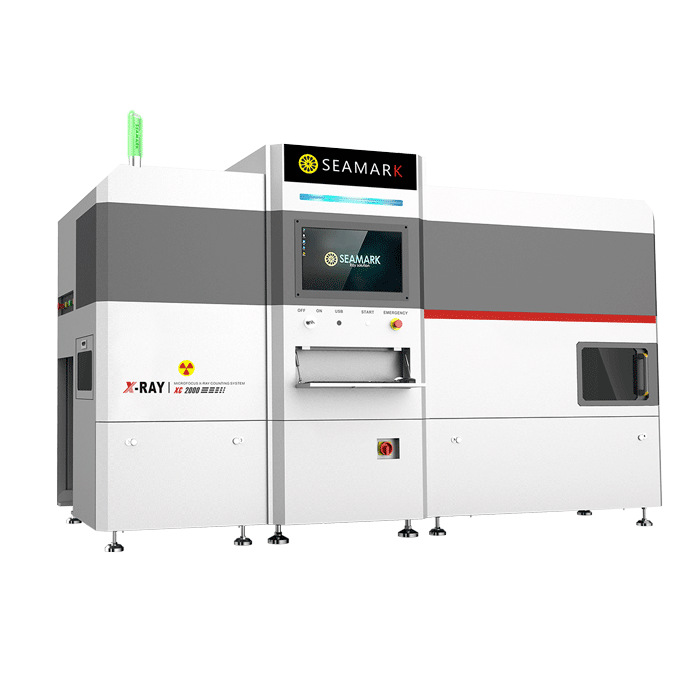

XC2000 Zhuomao XC2000 inline automatic X-ray component counter
Inline Counter

XC2000

Inline automatic X-ray component counter for integrated, high-throughput SMD material counting.

Request a QuoteEnquire →
AOI / SPI InspectionAOI光学检测 / SPI锡膏检测

Automated optical and solder-paste inspection systems for the SMT line, verifying paste deposition and placement quality before defects reach reflow.

SP3100 Zhuomao SP3100 solder-paste inspection (SPI) system
Solder-Paste Inspection

SP3100

Solder-paste inspection (SPI) system that verifies paste volume, height and offset after stencil printing.

Request a QuoteEnquire →

Additional models and configurations are available across every line (extended BGA, IC, battery, 3D/CT, casting and high-speed counter SKUs). Request a quote with your requirement and we’ll match the right system.

Not sure which system?

Send us your application · we’ll spec it.

Request a Quote Contact Us
